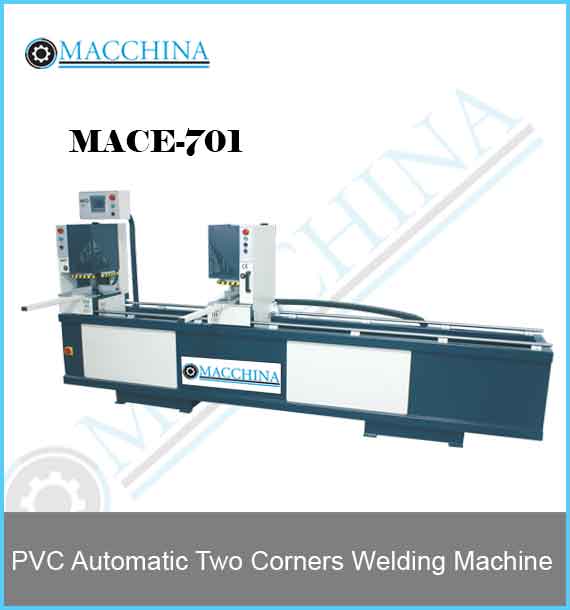

PVC Automatic Two Corners Welding Machine

PVC Automatic Two Corners Welding Machine

Macchina India



  • Operates with 6 BAR air and 380v voltage.
  • Suitable for welding two corners of all kinds of profiles.
  • Button controlled which is an advantage for mass production.
  • Melting uniting and compressing pressures are separately adjustable.
  • Melts any pvc profile unite (cases, doors, wings, drillings profiles) in the standard measure of 3mm without reuiring time adjustment.
  • The constant unit is automatically miovable on 50mm inside it self after the welding the profile moves away providing facility of use.
  • The back support makes using the machine extremely comfortable.

Technical Parameter

Voltage/Freuency220 V/ 50 HZ
Total Power5.5 KW
Air Pressure6-8 Bar
Air Consumption150 Lt/min.
Max. Profile Height180 mm
Max. Profile Width120 mm
Heating Time25 s ±
Welding Time25 s ±
Welding Temprature250°C ±
Machine Length3850mm
Machine Width740 mm
Machine Height1470 mm
Machine Weight470 Kg
Control SystemMicro Computer
