Description

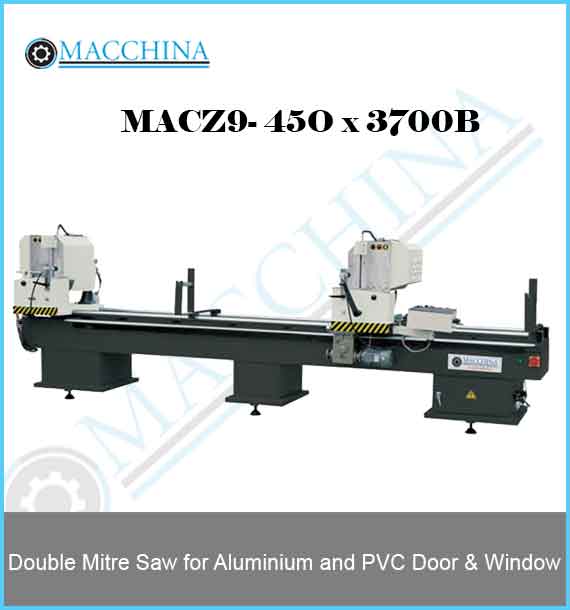

This machine is used for processing the UPVC profiles at angles of -45º ~90º ~45º the swaying stable feeder is adopted, and the pneumatic driving system is used in profiles clamping and cutting. It has the features of easy operation and high accuracy.
Technical Parameter
Model number | MACZ9-450X3700B |
Working Air Pressure | 0.5~0.6 Mpa |
Air consumption | 100L/min |
Power supply | 380V 50Hz |
Input power | 3.55 kw |
Blade rotational speed | 2800 r/min |
Blade Outer Diameter | 450mm |
Blade Inner Diameter | 30mm |
Double cutting length | 450~3500mm |
Cutting Weidth | ≤120mm |
Cutting width | ≤165mm |
Contour dimension | 4500×1300×1650mm |
Machine weight(about) | 950kg |
