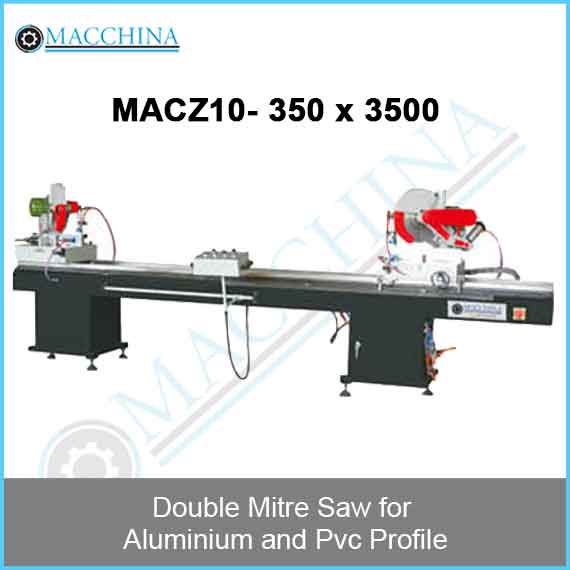

Macchina India || Double Mitre Saw


This machine is used for processing the UPVC profiles at angles of -45º ~90º ~45º the swaying stable feeder is adopted, and the pneumatic driving system is used in profiles clamping and cutting. It has the features of easy operation and high accuracy.

Technical Parameter

Model numberMACZ10-350X3500
Working Air Pressure0.4~0.6 Mpa
Air consumption100L/min
Power supply380V 50Hz
Input power2×1.1kw
Blade rotational speed3200 r/min
Double cutting length450~3500mm
Cutting Height≤100mm
Cutting width≤200mm
Contour dimension4000×1120×1450mm
Machine weight(about)620kg
