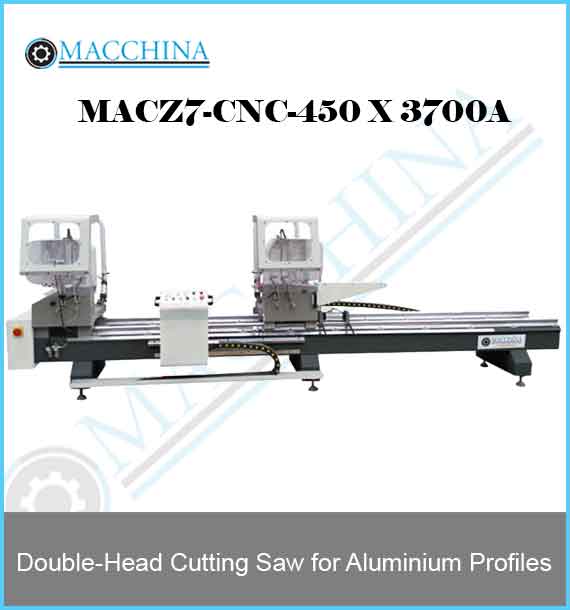

Double-Head Cutting Saw for Aluminum Profiles

Double-Head Cutting Saw for Aluminum Profiles

Macchina India

Categories: ,

Description

This machine is used for processing the UPVC profiles at angles of -45º ~90º ~45º the swaying stable feeder is adopted, and the pneumatic driving system is used in profiles clamping and cutting. It has the features of easy operation and high accuracy.

Technical Parameter

Model numberMACZ7-CNC-450X3700A
Working Air Pressure0.5~0.6 Mpa
Air consumption100L/min
Power supply380V 50Hz
Input power3.55 kw
Blade rotational speed2800 r/min
Blade Outer Diameter450mm
Blade Inner Diameter30mm
Double cutting length450~3500mm
Cutting Weidth≤120mm
Cutting width≤165mm
Contour dimension4500×1300×1650mm
Machine weight(about)1000kg
