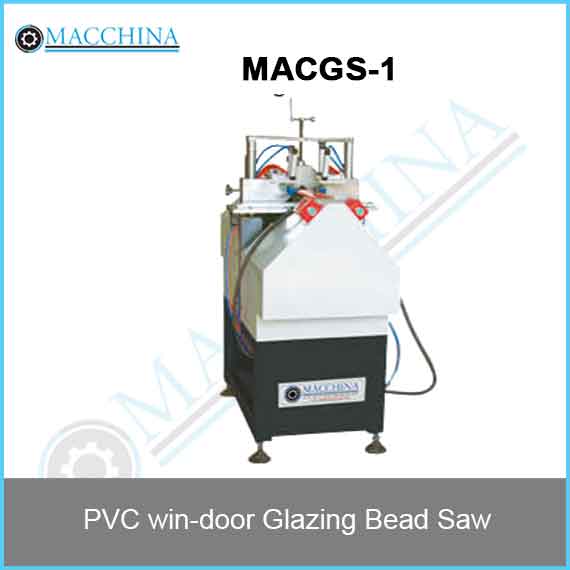

PVC win-door Glazing Bead Saw

PVC win-door Glazing Bead Saw

Macchina India



The machine is used for processing the UPVC profile glazing beads, With the cutting and milling blades, it can finish the 45° cutting of two glazing beads in the back, The machine is fixed horizontally so that the clamping of profile is simple and the cutting movement is stable, Thus, it ensures the high accuracy of bead processing and beautiful appearance.

Technical Parameter

Model numberMACGS-1
Working Air Pressure0.4~0.6 Mpa
Air consumption80L/min
Power supply380V 50Hz
General input power0.75×2 kw
Motor rotational speed2800 r/min
Processing range(length)320~1800mm
Contour dimension2000×1350×1350mm
Contour dimension2000×1350×1350mm
Machine weight(about)200kg
