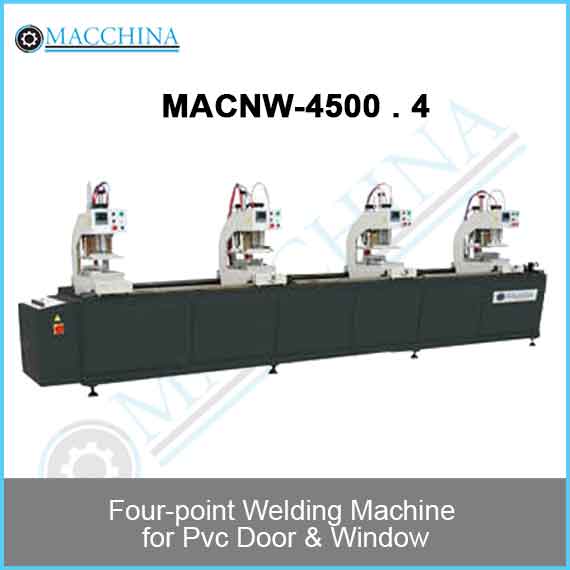

Four-point Welding Machine

Four-point Welding Machine

Macchina India

Category:

Description

It is a special machine for processing UPVC doors and windows. It can weld and the combination. Programming control and pneumatic driving systems are used to achieve processing range. The four heads can work individually, simultaneously or combinative.

Technical Parameter

Model numberMACNW-4500.4
Power supply380V /220V 50Hz
Air consumption200L/min
Motor power4.5kw
Welding length400~4500mm
Welding profile height20~110mm
Welding profile width≤120mm
Operation air pressure0.4 ~ 0.6Mpa
Contour dimension(L×W×H)5400×1100×1700mm
Machine weight(about)1200kg
