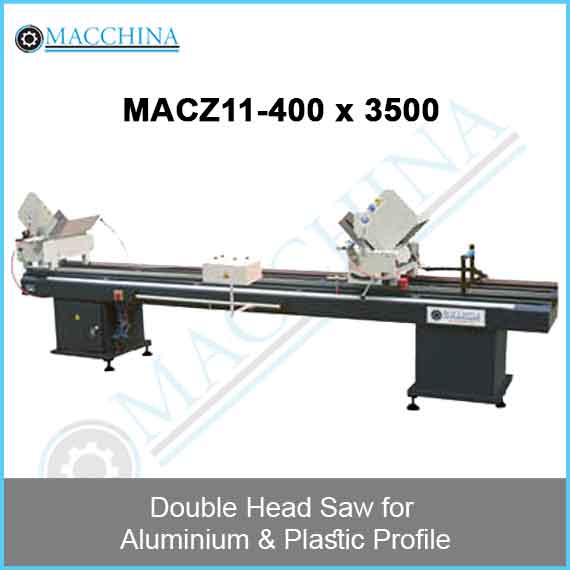

Double Head Saw for Aluminum & Plastic Profile

Double Head Saw for Aluminum & Plastic Profile

Macchina India



This machine is used for processing the UPVC profiles at angles of -45º ~90º ~45º the swaying stable feeder is adopted, and the pneumatic driving system is used in profiles clamping and cutting. It has the features of easy operation and high accuracy.

Technical Parameter

Model numberMACZ11-400X3500
Working Air Pressure0.5~0.6 Mpa
Air consumption100L/min
Power supply380V 50Hz
Input power3 kw
Blade rotational speed2800 r/min
Blade Outer Diameter400mm
Blade Inner Diameter30mm
Double cutting length450~3500mm
Cutting Height≤100mm
Cutting width≤150mm
Contour dimension4000×900×1500mm
Machine weight(about)620kg
