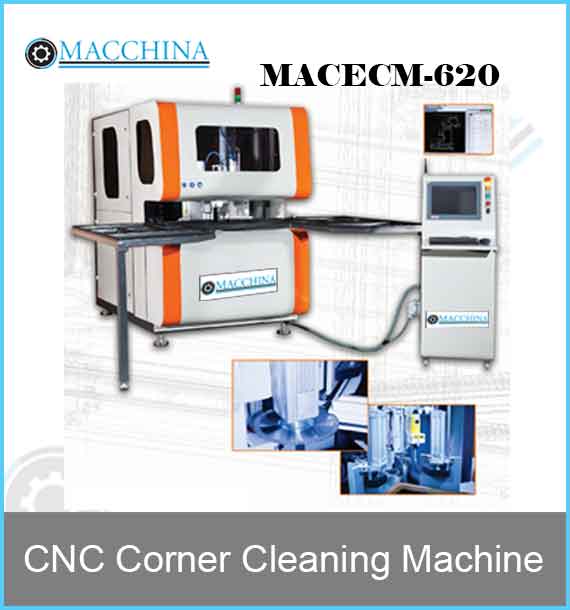

CNC Corner Cleaning Machine

CNC Corner Cleaning Machine

Macchina India


    • Corner cleaning stability with 2 axes high-speed servo control edaxes
    • Automatic knifese lection for selected profile foil type(colour//white)
    • High quality cleaning results on surfaces by way of using automatic highness controller
    • Industrial PC Based Control System (Beckhoff)
    • Remote destktop connection by way of Wifi or Network connection
    • File transfer by USB or network
    • Easy programming support via DXF, DWG of PDF file extensions
    • Central lubrication system for all bearings, axes and sliding bearings
    • 15″ Touch screen
    • High performance industrial PC working between 0C-55C with Operating system Windows XP Embeded and fanless design
    • All alarms and messages can shown on the machine interface by way of software which developed by MACCHINA INDIA Software R&D Department.
    • By way of using private reote desktop connection, which developed by ZOREN HOPS Software R&D Department,, expert service technicians can connect true machine automation system and machine interface for fixing or determine problems.

Optional :

    • Additional tool for sliding frames inside surface leaning
    • Additional tool for mono block frames innner surface leaning
    • Expanding to Single Line by way of connection to 4 point welder with 2 Axes robo design turning table.

PS : Earning 12 m2 on working area with benefit of the brand new design turning table placed on the corner of the line.

Technical Parameter

Voltage400 V AC, 3P, 50/60 Hz
Power Consumption7 KW, 18A
Air Pressure6-8 Bar
Air Consumption110 Lt/min.
Saw Blade Detailsφ250xφ30×3.2 mm, Z=80
Saw Blade rpm5200 rpm
Drillers rpm14000 rpm
Max. Axes Speed45 m/min.
Max. Outter Frame Dim.Limitless (Automatic : 3300 x 2600 mm)
Min. Outter Frame Dim.380 x 380 mm (Automatic : 480 x 480 mm)
Max. Profile Height200 mm
Max. Profile Length30 mm
Max. Profile Width130 mm
Machine Height1900 mm
Machine Length2150 mm
Machine Width1250 mm
Machine Weight960 Kg.
Tool Count11 piece
