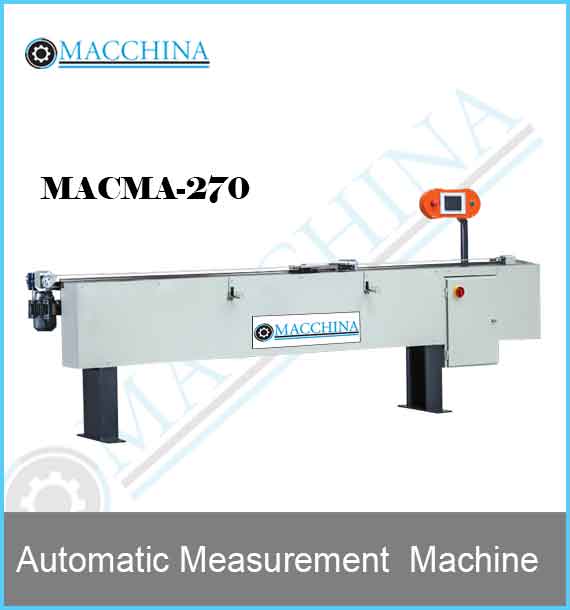

Automatic Measurement Machine

Automatic Measurement Machine

Macchina India



  • Digital rod with 0.1 mm accuracy for measuring glazing bead profiles.
  • Measure up to 2m thanks to special design (3m with the extensioin part)
  • Measureddata is transferred to the machine with an advance RF transmitter and stored in the machine.
  • Measured data is cut in order without allowing any confusion and processed data is marked on the mahine.
  • The RF connection distance is 150 m and the coverage signal can be viewed on the digital screen.
  • The motions on the machines can be simulated visually through high-tech 16 million color TFTLCD operator.


Technical Parameter

Power Supply220V, 3PH, 50 Hz
Total Power0.37Kw
Max. Profile Length3000mm
Max. Profile Width185mm
Machine Height1400 mm -1500mm (Adjustable)
Machine Width450 mm
Machine Length3750 mm
Machine Weight192 Kg.
